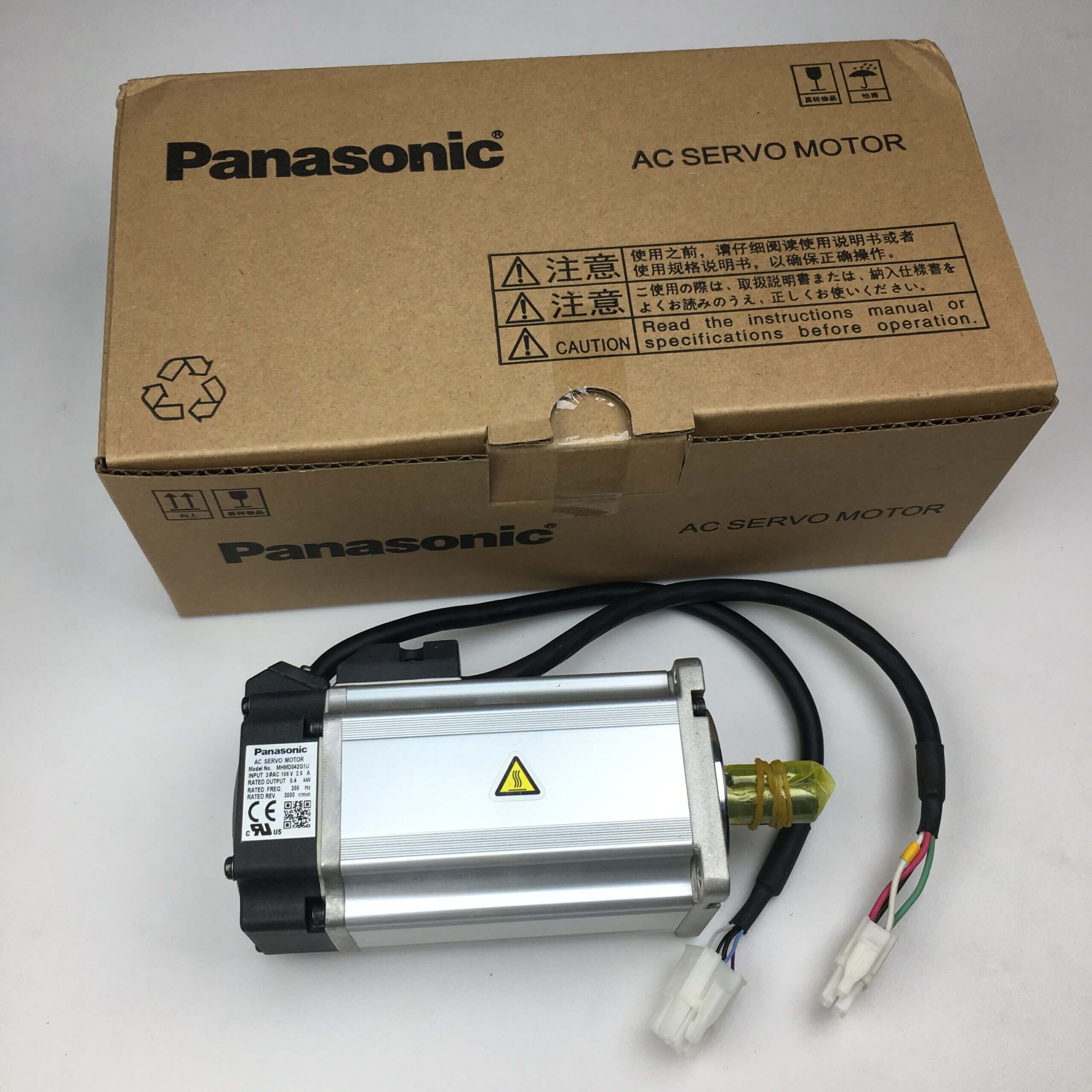

Original Panasonic Servo Motor MINAS A5 200W MSMJ022G1U/MSMD022G1U
Product Overview
The Panasonic Servo Motor MINAS A5 MSMD 200 W AC100 V is designed to elevate your automation solutions to new heights. Fusing advanced engineering with unparalleled reliability, this servo motor stands out as a beacon of excellence in performance and efficiency. With robust IP65 and IP67 ratings, it is perfectly suited for a variety of environments, ensuring protection against dust and water ingress, making it an ideal choice for both industrial and high-precision applications.
Key Features
Crafted to perfection, the MINAS A5 series showcases notable features that make it a valuable asset in motion control systems:
| Specification | Details |
|---|---|
| Model Number | MSMD021G1□ / MSMD021S1□ |
| Frame Symbol | B-frame |
| Input Power Capacity (kVA) | 0.5 |
| Rated Output (W) | 200 |
| Rated Torque (N•m) | 0.64 |
| Peak Torque (N•m) | 1.91 |
| Rated Current (A (rms)) | 2.5 |
| Maximum Current (A (o-p)) | 10.6 |
| Rated Rotational Speed (r/min) | 3000 |
| Maximum Rotational Speed (r/min) | 5000 |
| Moment of Inertia (without brake) (×10–4 kg•m²) | 0.14 |
| Moment of Inertia (with brake) (×10–4 kg•m²) | 0.16 |
| Recommended Inertia Ratio | 30 times or less |
| Rotary Encoder Specifications | 20-bit Incremental / 17-bit Absolute |
| Resolution per Single Turn | 1048576 / 131072 |
Performance and Reliability
This servo motor combines sophisticated control features with robust design principles, thus ensuring a smooth and precise operation across a variety of applications. With a rated rotational speed of 3000 r/min, it promises not just efficiency but also a high response rate, enabling you to enhance the agility of your systems. The momentary peak torque further reinforces its capability to handle sudden loads effectively.
Application Versatility
Thanks to its wide operational capabilities, the Panasonic MINAS A5 MSMD 200 W is exceptionally versatile. This motor is adept for roles in robotics, CNC machinery, packaging systems, and beyond. The added advantage of a regenerative braking feature, with no limit on frequency, further maximizes operational efficiency while reducing energy consumption.
Conclusion
Embrace the future of motion control with the Panasonic Servo Motor MINAS A5 MSMD. Its combination of power, precision, and durability makes it not just a component, but a cornerstone of innovation in any technology-driven environment.
